38T System

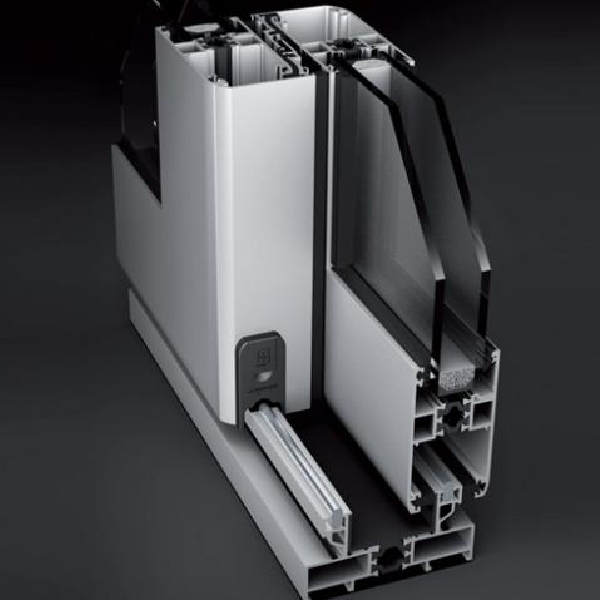

38T Sliding System offers an aesthetic and functional sliding door solution for large glass applications with its robust structure and high carrying capacity.
Get Info & Buy via WhatsApp
Request via FormThe 38T Sliding System combines durability and aesthetics with a 77.4 mm frame and 38 mm sash width. Its wall thickness of 1.4–1.5 mm and 14.8 mm thermal break provide energy efficiency and long-lasting use.
With its wide glass accommodation range, it can be used in various spaces and applications. Special accessories, a replaceable track profile, and full compatibility with the 60T system make it a functional solution offering easy maintenance and cleaning. With a load capacity of up to 120 kg, it is also ideal for large openings and heavy glass panels.
| Frame Width | 77.4 mm |
| Sash Width | 38 mm |
| Wall Thickness | 1.4 – 1.5 mm |
| Thermal Break | 14.8 mm |
| Thermal Transmittance | Uf = 4.45 W/m²K |
| Glass Range | 4 – 24 mm |
| Load Capacity | 120 kg |
| Compatible Systems | Fully compatible with 60T system |
| Track Profile | Replaceable |
- High load capacity (120 kg) for large and heavy glass panels
- Durable and long-lasting body
- Energy efficiency with thermal break and low Uf value
- Compatible with glass thicknesses from 4 – 24 mm
- Replaceable track profile for easy maintenance and cleaning
- Aesthetic and functional design
- Fully compatible with 60T system, with various accessory options
