50F System

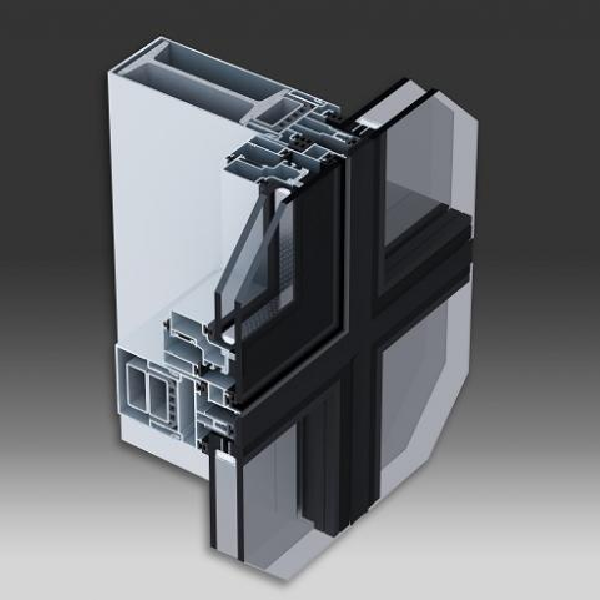

50F Facade System offers architectural flexibility and aesthetics with its steel reinforced modular structure suitable for high and wide openings.
Get Info & Buy via WhatsApp
Request via FormThe 50F Façade System offers a similar external appearance to the 65SS Steel Reinforced Façade System, which is especially used for cladding high and wide openings. Thanks to its external structure and shared profiles, it provides architectural flexibility in projects.
The 50F System can be applied as either a conventional capped façade system with insulated glazing or as a silicone façade system using an economical in-pane locking panel. Its various clamping profiles adapt to different steel construction dimensions. It allows for the integration of operable vents, ensures safe water drainage with a condensate channel, and offers architectural flexibility with a straight-cut cover adapter and dual-color interior cladding options.
| Application Area | High and wide openings, modern façade applications |
| Steel Reinforcement | Compatible with 65SS Steel Reinforced Façade System |
| Profile Type | Common and interchangeable clamping profiles |
| Cover Installation | Straight-cut cover adapter without notching |
| Thermal Insulation | Conventional insulated glazing, economical in-pane locking |
| Operable Vent | Applicable |
| Water Drainage | Safe drainage with condensate channel |
| Color Option | Dual-color application possible |
- Strong support system for high and wide spans
- Extra durability thanks to steel-reinforced structure
- Modular design compatible with capped and silicone façade systems
- Profiles adaptable to various steel construction dimensions
- Easy and flexible installation with straight-cut cover adapter
- Architectural aesthetics with dual-color application option
- Safe water drainage via condensate channel
- Operable vent integration possible
