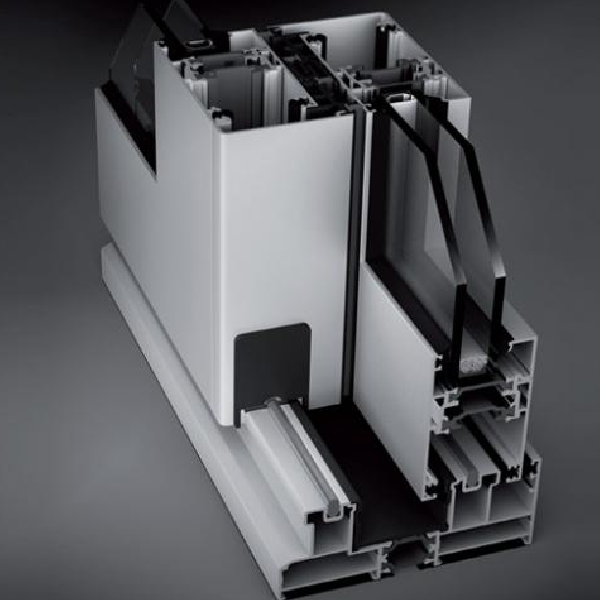

45T System
45T Sliding and Lift & Drive System offers ideal solutions to modern sliding system needs with its high insulation performance, robust body structure and dual use option.
Get Info & Buy via WhatsApp
Request via FormThe 45T Sliding and Lift-Slide System offers both durability and insulation advantages with a 45 mm sash width and a 32 mm thermal break. With a thermal transmittance value of Uf = 4.0 W/m²K, it ensures energy efficiency, while its wide glass accommodation range of 20 mm to 34 mm allows for various applications. Both standard sliding and lift-slide systems can be implemented using the same sash profile.
In lift-slide usage, superior air and sound insulation is achieved with TPV gaskets. The replaceable track profile provides easy maintenance and cleaning, while the pin-connection technology enables quick and practical installation. With two different accessory options supporting glass weights from 90 kg to 200 kg, it is also compatible with heavy glass applications.
| Sash Width | 45 mm |
| Thermal Break | 32 mm |
| Thermal Transmittance | Uf = 4.0 W/m²K |
| Glass Range | 20 – 34 mm |
| Usage | Sliding and Lift-Slide System |
| Accessory Options | Two types with 90 kg and 200 kg load capacity |
| Track Profile | Replaceable |
| Installation | Easy setup with pin-connection |
| Gasket | TPV gasket in lift-slide system |
- Offers both sliding and lift-slide solutions with the same sash
- High energy efficiency with 32 mm thermal break
- Superior insulation performance with Uf = 4.0 W/m²K
- Accessory options with 90 kg and 200 kg load capacities
- Better air and sound insulation with TPV gasket (lift-slide)
- Quick and practical installation with pin-connection
- Easy maintenance and cleaning with replaceable track profile
- Wide application range with 20–34 mm glass thickness
