64T System

64T System

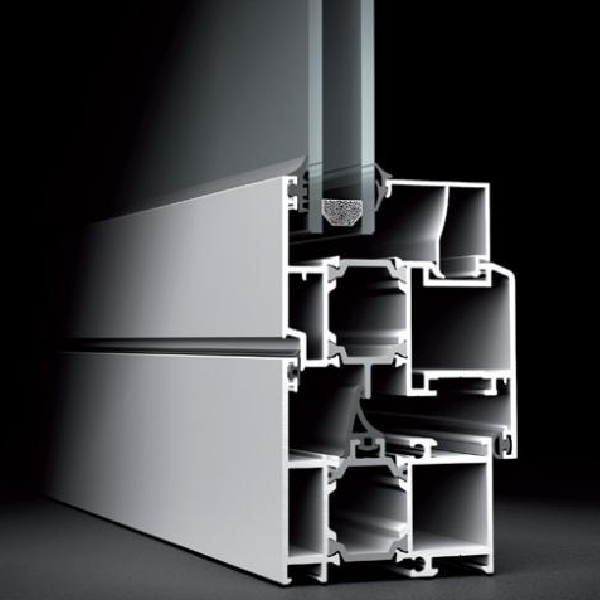

64T System is an aluminium joinery system offering wide openings, designed for projects requiring energy efficiency and maximum durability with 24 mm heat barrier and high wall thickness.

WhatsAppGet Info & Buy via WhatsAppFormRequest via Form
SKU3869
Categories,

Başak Aluminium 64T System is a modern aluminum profile system with a 64 mm frame width and 72 mm sash width, allowing for wide glass applications. With a wall thickness of 1.8–2 mm and a 24 mm thermal break, it ensures high thermal insulation and energy efficiency.

Equipped with polyamide insulators and EPDM gaskets, the system provides long-lasting sealing and insulation. It supports glass thicknesses between 10–34 mm and features a central gasket for water and dust blocking, along with a secure air and water drainage system. The Euro-standard accessory channel enables quick installation and easy access to compatible hardware. Corner cleat connections and custom profile options deliver both aesthetic and secure solutions for architectural projects.

Frame Width 64 mm
Sash Width 72 mm
Wall Thickness 1.8 – 2 mm
Thermal Break 24 mm
Thermal Transmittance (Uf) 2.7 W/m²K
Accessory Channel Complies with Euro standards
Insulators Polyamide
Gaskets EPDM
Glass Thickness Range 10 – 34 mm
Central Gasket Water and dust blocking
Corner Joint With corner cleat
Air/Water Drainage Secure system
Special Profiles Suitable for standard and custom angles
  • High thermal insulation and energy efficiency with 24 mm thermal break
  • Modern and functional design with wide frame and sash structure
  • Maximum durability and long life with 1.8–2 mm wall thickness
  • Superior sealing with polyamide insulators and EPDM gaskets
  • Compatible with glass thicknesses between 10–34 mm
  • Water and dust-blocking central gasket for cleanliness and sealing
  • Secure and aesthetic corner joints with corner cleat
  • Easy maintenance with secure air and water drainage system
  • Flexible and functional solutions for both standard and custom-angled projects
