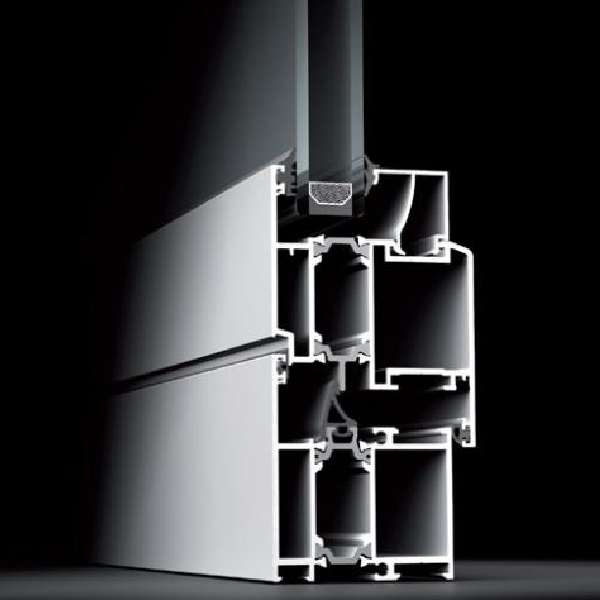

58T System
58T System is an aluminium joinery system preferred in projects requiring superior insulation and durability with its high wall thickness and heat barrier structure.
Get Info & Buy via WhatsApp
Request via FormThe Başak Aluminum 58T System, with its 58 mm frame and 66 mm sash width, is ideal for wide openings and offers extra durability with a wall thickness of 1.8–2 mm. Its 18 mm thermal barrier and polyamide thermal breaks provide excellent thermal insulation.
The Euro-standard compatible accessory channel ensures fast and easy installation. EPDM material used in all gaskets delivers long-lasting sealing and insulation. Supporting glass thicknesses from 4–34 mm, the system also includes a central gasket that blocks water and dust, enhancing functionality. The secure drainage system and corner cleat offer both aesthetic and safe corner connections.
| Frame Width | 58 mm |
| Sash Width | 66 mm |
| Wall Thickness | 1.8 – 2 mm |
| Thermal Barrier | 18 mm |
| Thermal Transmittance | Uf = 2.96 W/m²K |
| Accessory Channel | Euro-standard compatible |
| Thermal Breaks | Polyamide |
| Gaskets | EPDM |
| Glass Thickness Range | 4 – 34 mm |
| Central Gasket | Water and dust blocking |
| Corner Joint | With corner cleat |
| Air/Water Drainage | Secure system |
| Special Profiles | Compatible with standard and custom angles |
- Long-lasting and high durability with increased wall thickness
- Superior thermal insulation with 18 mm thermal barrier
- Quick and easy installation with Euro-standard accessory channel
- Enhanced insulation and sealing with polyamide breaks and EPDM gaskets
- Compatible with glass thicknesses between 4–34 mm
- Central gasket for maximum sealing against water and dust
- Secure and aesthetic corner connection with cleat
- Reliable air and water drainage system for long-lasting performance
- Functional design suitable for both standard and custom angle projects
