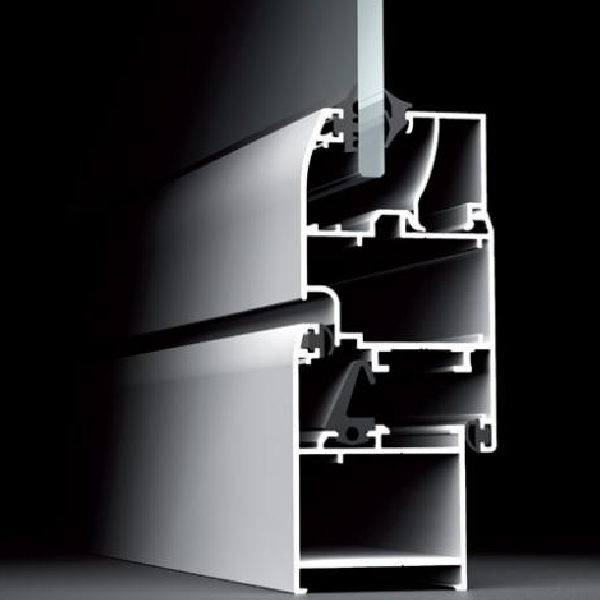

40C System
Başak Aluminium’s 40C System is a frame-wing series with high durability and functional details developed in accordance with modern architectural requirements.
Get Info & Buy via WhatsApp
Request via FormThanks to the accessory channel that complies with Euro standards, installation is extremely easy and offers a wide range of compatible hardware options. With its aesthetic design, functional application possibilities, and durable structure, it is an ideal solution for both window and door projects.
| Frame Width | 40 mm |
| Sash Width | 45 mm |
| Wall Thickness | 1.2 – 1.3 mm |
| Installation | Euro-standard accessory channel |
| Perimetric Channel | 9-axis / 20 mm hinge spacing |
| Gasket Type | All gaskets are EPDM |
| Glass Thickness Range | 4 – 22 mm |
| Central Gasket | Water and dust blocking application |
| Corner Joint | Corner cleat and pin connection options |
| Drainage System | Secure air and water drainage |
- Easy and fast installation
- Functional and aesthetic window & door solutions
- Durable and long-lasting EPDM gasket use
- Wide range of accessories and glass options
- Superior sealing against water, dust, and air infiltration
- Custom profile options for special-angle projects
