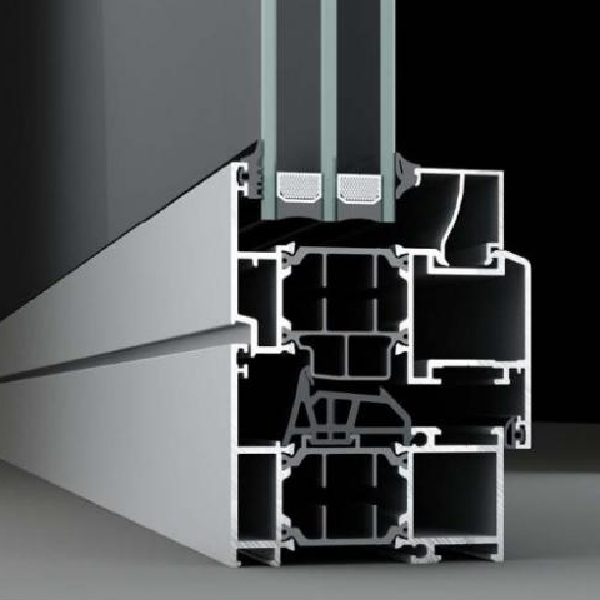

74T System
74T System is a new generation aluminium joinery solution suitable for large openings and modern architecture with its wide heat barrier, high insulation and robust structure.
| Frame Width | 74 mm |
| Sash Width | 82 mm |
| Wall Thickness | 1.8 – 2 mm |
| Thermal Break | 34 mm |
| Thermal Transmittance (Uf) | 2.33 W/m²K |
| Accessory Channel | Complies with Euro standards |
| Insulators | POLYAMIDE |
| Gaskets | EPDM |
| Glass Thickness Range | 24 – 50 mm |
| Central Gasket | Water and dust blocking |
| Corner Joint | With corner cleat option |
| Air/Water Drainage | Secure drainage system |
| Profile Options | Standard and custom angles |
Ürün AçıklamaProduct Description
Başak Aluminium 74T Series is a high-performance door and window system specially developed for modern buildings with advanced insulation needs. With a 74 mm frame width, 82 mm sash width, wall thickness ranging from 1.8 to 2 mm, and an extra-wide 34 mm thermal break, it ensures maximum energy efficiency, long-lasting durability, and secure use.
Equipped with polyamide insulators and EPDM gaskets, the system features a central gasket that blocks water and dust, delivering year-round sealing and comfort. Thanks to its wide glass range, robust corner cleat connections, and Euro-standard accessory channels, it offers flawless solutions for large-scale and prestigious architectural projects.
Teknik ÖzelliklerTechnical Specifications
| Frame Width | 74 mm |
| Sash Width | 82 mm |
| Wall Thickness | 1.8 – 2 mm |
| Thermal Break | 34 mm |
| Thermal Transmittance (Uf) | 2.33 W/m²K |
| Accessory Channel | Complies with Euro standards |
| Insulators | POLYAMIDE |
| Gaskets | EPDM |
| Glass Thickness Range | 24 – 50 mm |
| Central Gasket | Water and dust blocking |
| Corner Joint | With corner cleat option |
| Air/Water Drainage | Secure drainage system |
| Profile Options | Standard and custom angles |
Ürün AvantajlarıProduct Advantages
- High energy efficiency with 34 mm wide thermal break
- Durable and long-lasting use with 1.8–2 mm wall thickness
- Architectural solutions for large openings with 74 mm frame and 82 mm sash
- Easy installation and accessory compatibility with Euro-standard accessory channels
- Maximum insulation and sealing with POLYAMIDE insulators and EPDM gaskets
- Flexible design with 24–50 mm glass thickness range
- Clean and comfortable use with water and dust-blocking central gasket
- Strong and precise corner joint with cleat option
- All-season comfort with secure air and water drainage system
- Functional profile options suitable for standard and custom-angled projects
